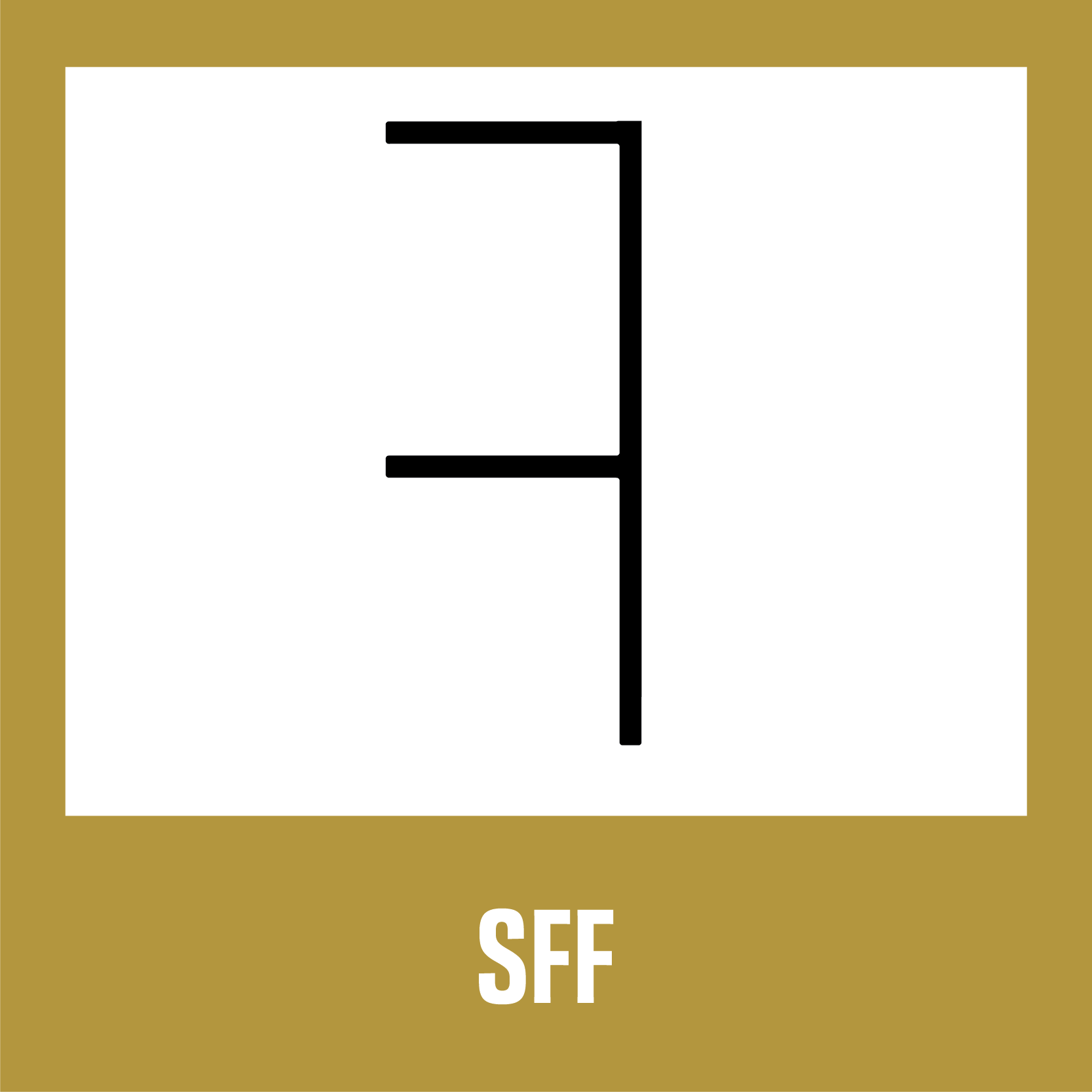

Smooth Finish F-Mold

Trim Purpose

Specs, MSDS, and LEED Information for Flannery Trims & Products

Flannery’s Smooth Finish F-Mold creates an aesthetic termination reveal in any stucco wall system. Typically installed where a stucco wall terminates at an opposing wall or dissimilar material, the Smooth Finish F-Mold can act as a stucco stop with a built in reveal. Flannery’s Smooth Finish F-Molds are unique because they do not have the traditional plaster key at the reveal edge. With the plaster key removed, the plasterer can bring his finish coat right up to the reveal edge creating a clean sharp edge.

Product Details

Flannery’s Smooth Finish F-Mold Trims are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Aluminum Plaster trims come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish or other factory finishes and custom paint orders are available. Click on Info Tab above for Factory Finishes.


Product Details

Part No. “A” Depth “B” Width Stucco Thickness Stock Item Venting Available
SFF 468-375 15/32″ 3/4″ 5/8″ No N/A
SFF 50-25 1/2″ 1/4″ 5/8″ No N/A
SFF 50-50 1/2″ 1/2″ 5/8″ No Yes
SFF 50-75 1/2″ 3/4″ 5/8″ No Yes
SFF 75-25 3/4″ 1/4″ 7/8″ No N/A
SFF 75-50 3/4″ 1/2″ 7/8″ No Yes
SFF 75-75 3/4″ 3/4″ 7/8″ No Yes
SFF 75-100 3/4″ 1″ 7/8″ No Yes
SFF 75-200 3/4″ 2″ 7/8″ No Yes
Custom Sizes Available
