Drywall Reveal Corner

Trim Purpose

Specs, MSDS, and LEED Information for Flannery Trims & Products

Flannery’s Drywall Corner Reveal is an aluminum trim for outside corners of drywall. The Drywall Corner Reveal creates a “stepped” reveal look where two walls of drywall meet. Once drywall mud and tape is applied to the attachment flanges the outside corner has the appearance of a reveal instead of the conventional sharp cornerbead look.

Manufacturer's Specification

Flannery’s Drywall Reveal Corner is an aluminum drywall trim that is a standard extruded aluminum alloy 6063 T5 and are .050” thick. Aluminum trims come in 10′ lengths and shall have a standard Mill Finish for field priming and painting unless specified otherwise. Clear Anodized and Chem-film finishes, as well as other factory finishes and custom paint orders are available. You can view our factory finishes to see if we have what you are looking for or if you do not see the finish, you are looking for, chances are we can color-match it or we already have it! Flannery Trim wants to always make sure we can get you the right look and feel for your building project.

Drywall Reveal Corner

Part No. “A” Width “B” Width Stock Item Downloads
DWRW 50-50 1/2″ 1/2″ Yes DWG - Drywall Reveal CornerPDF - Drywall Reveal Corner
DWRW 625-625 5/8″ 5/8″ Yes DWG - Drywall Reveal CornerPDF - Drywall Reveal Corner
DWRW 100-100 1″ 1″ No DWG - Drywall Reveal CornerPDF - Drywall Reveal Corner

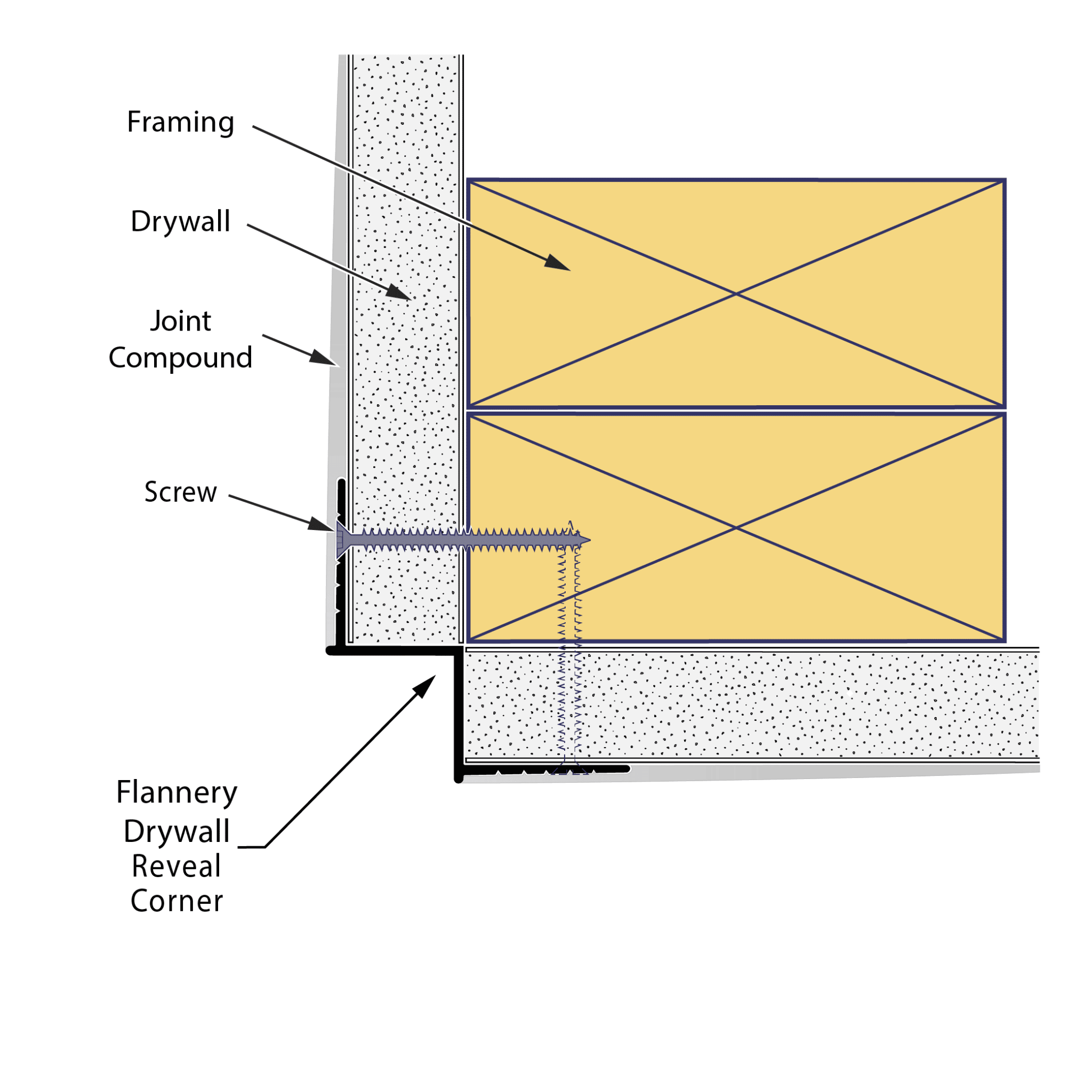

Attach Aluminum Drywall Trims through the taping flange to the drywall and framing with nails, screws, or other approved fastening methods. All drywall trims must be cut accurately and installed with tight, neat joints. Manufacturer recommends that a carbide tip blade along with blade lubricant be used when cutting any aluminum trim.
