Wall Covering Transition Corner
Trim Purpose
Specs, MSDS, and LEED Information for Flannery Trims & Products
Flannery’s Wall Covering Transition Corner (WCTC) is an outside corner trim for FRP (Fiberglass Reinforced Plastic). Unlike our standard outside corner, this trim allows for there to be a transition on a 90 degree outside corner where one side uses a wall covering and the other side uses drywall. This trim has two tapeable flanges so that the one side can be finished to drywall cleanly while the wall covering side can be installed to the drywall and the wall covering material can be applied smoothly overtop.
Manufacturer's Specifications

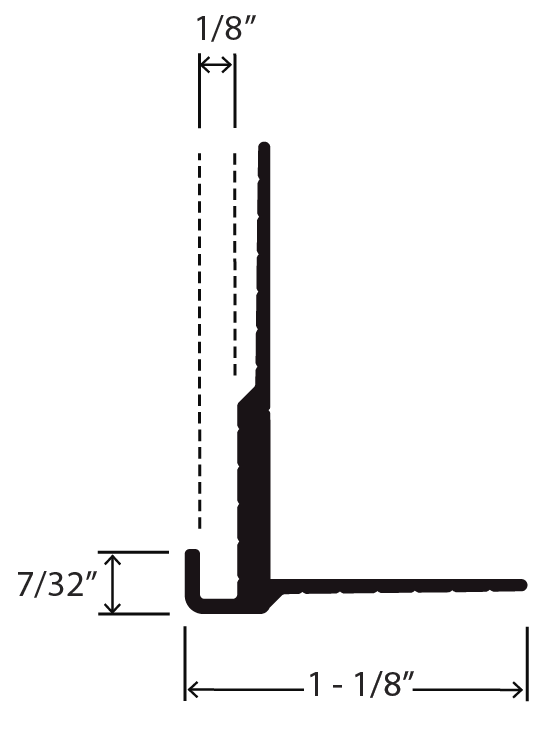

Flannery’s Wall Covering Trims are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Our Wall Covering Trims are meant for FRP (Fiberglass Reinforced Plastic) panels or wall coverings. We have three new wall covering trims including our Outside Corner. All of our Aluminum trims come in 10’ lengths (unless otherwise specified) and shall have a standard Mill Finish (for field priming & painting) or a Clear Anodized finish. Other factory finishes and custom paint orders, including Chem-film or Primer are available. You can view our factory finishes to see if we have what you are looking for or if you do not see the finish, you are looking for, chances are we can color-match it or we already have it! Flannery Trim wants to always make sure we can get you the right look and feel for your building project. *Scroll down to download the DWG and PDF files for the Wall Covering Outside Corner!
| Part No. | Stock Item | Downloads |
|---|---|---|
| WCTC 125-217 | Yes |   |

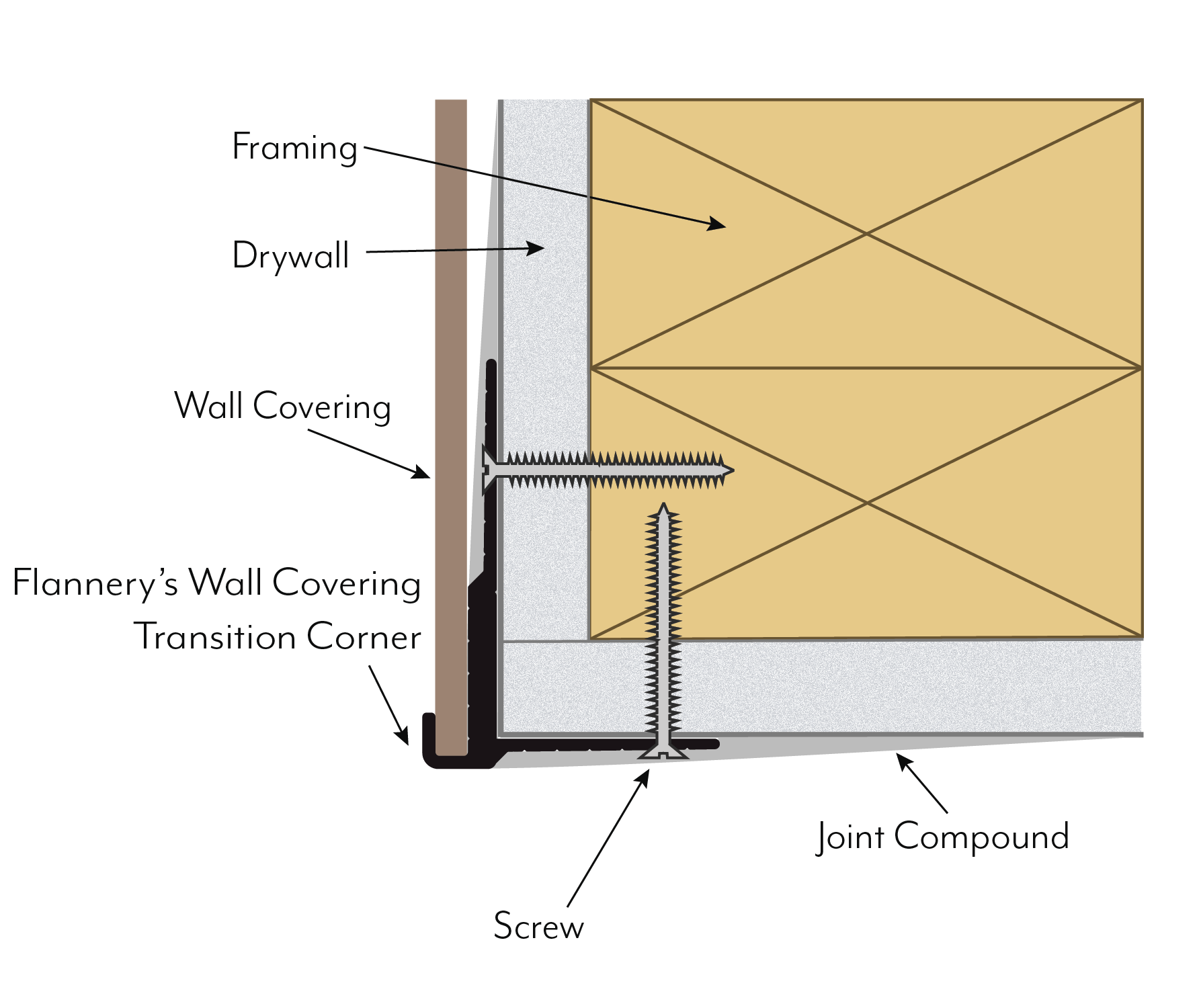

Attach Wall Covering Transition Corner Trims through the taping flange to the drywall and framing with nails, screws, or other approved fastening methods. All drywall trims must be cut accurately and installed with tight, neat joints. Manufacturer recommends that a carbide tip blade along with blade lubricant be used when cutting any aluminum trim.
