Wood Panel Corner Post
Trim Purpose
Specs, MSDS, and LEED Information for Flannery Trims & Products
Flannery’s Wood Panel Corner Post provides a clean, architectural finish for 90° outside corners. Compatible with 1/2”, 3/4”, or 1” millwork panels, this durable trim features a crisp 1/4” exposed aluminum edge for a modern, uniform reveal. Ideal for high-traffic areas, its abuse-resistant construction ensures long-lasting performance without compromising design.
Manufacturer's Specifications
Flannery’s Wood Panel Trims are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Aluminum panel trims come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish or other factory finishes and custom paint orders are available. You can view our factory finishes to see if we have what you are looking for or if you do not see the finish, you are looking for, chances are we can color-match it or we already have it! Flannery Trim wants to always make sure we can get you the right look and feel for your building project.
| Part No. | “A” Width | “B” Width | Panel Size | Stock Item | Downloads |
| WPCP 50-25 | 1/4″ | 1/2″ | 1/2″ | Yes |   |
| WPCP 75-25 | 1/4″ | 3/4″ | 3/4″ | Yes | |
| WPCP 100-25 | 1/4″ | 1″ | 1″ | Yes | |

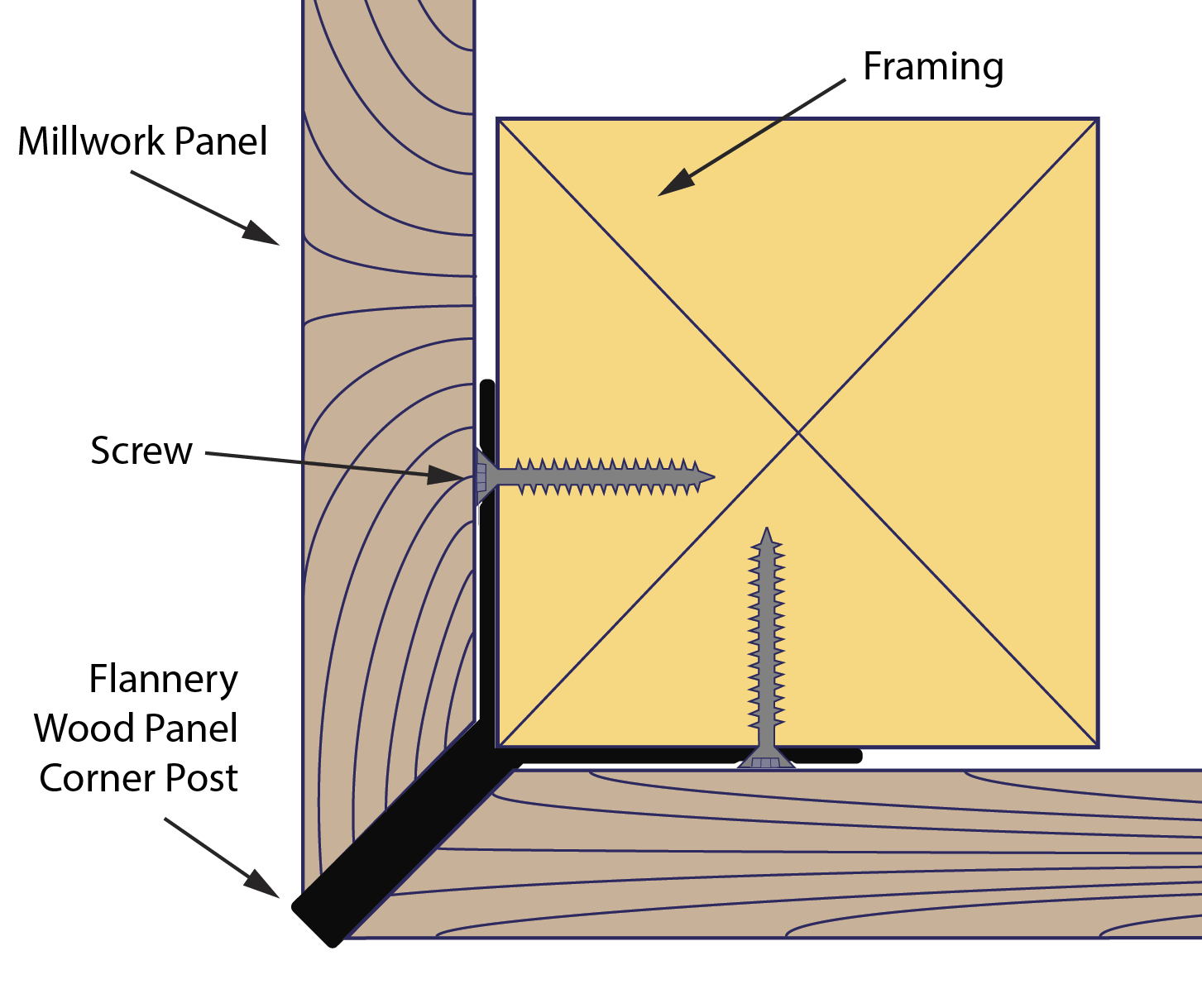

Wood Panel Trims must be attached to the framing with nails, screws or other approved fastening methods.
