Wood Panel Edge Post
Trim Purpose
Specs, MSDS, and LEED Information for Flannery Trims & Products
Flannery’s Wood Panel Edge Post creates a clean, finished termination at the edge of millwork panel installations. Designed for use with 1/2”, 3/4”, or 1” thick panels, it features a precise 1/4” aluminum post that delivers a straight, uniform reveal at exposed panel ends. Ideal for modern interiors, its durable design ensures a refined edge detail that holds up in high-traffic environments.
Manufacturer's Specifications

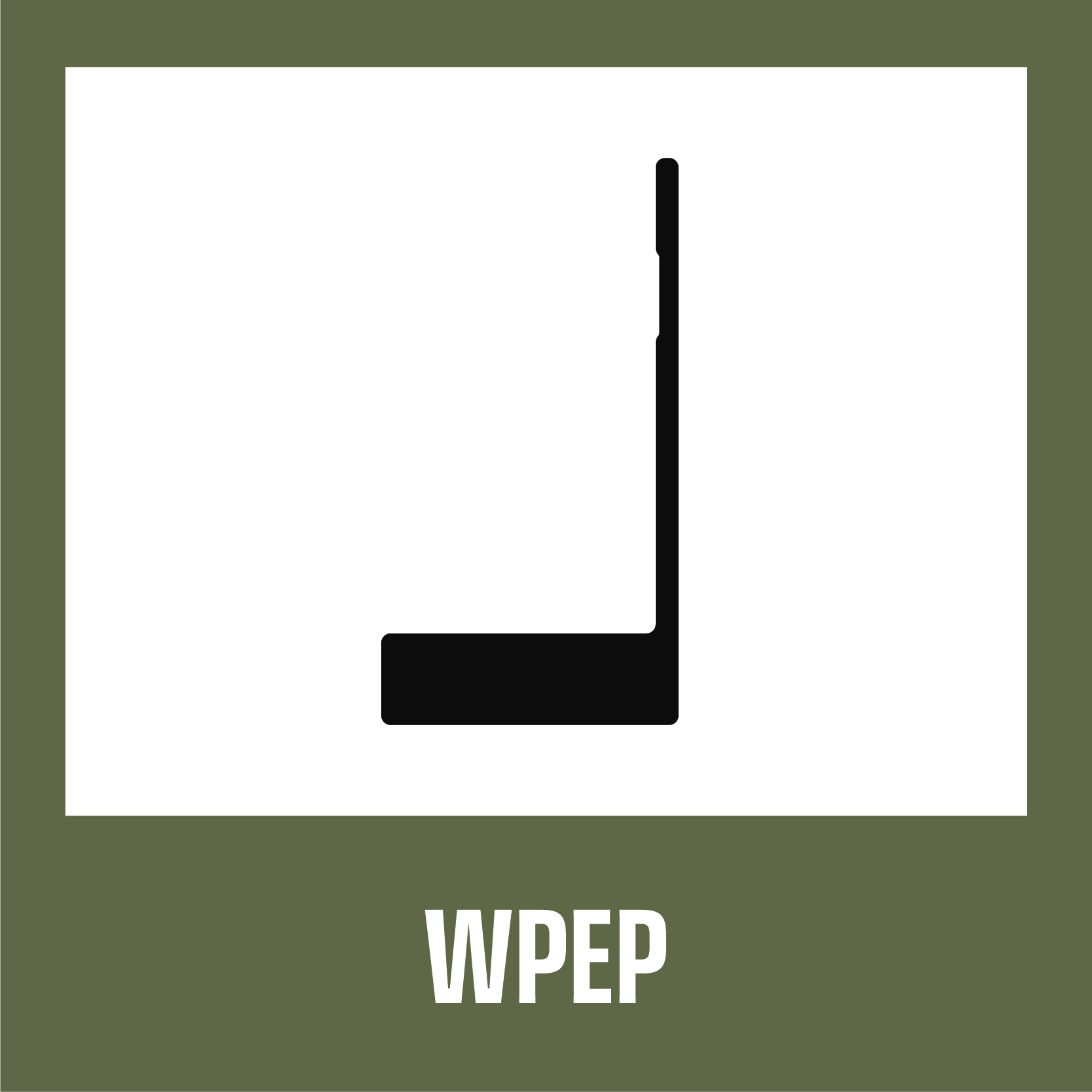

Flannery’s Wood Panel Trims are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Aluminum panel trims come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish or other factory finishes and custom paint orders are available. You can view our factory finishes to see if we have what you are looking for or if you do not see the finish, you are looking for, chances are we can color-match it or we already have it! Flannery Trim wants to always make sure we can get you the right look and feel for your building project.
| Part No. | “A” Width | “B” Width | Panel Size | Stock Item | Downloads |
| WPEP 50-25 | 1/4″ | 1/2″ | 1/2″ | Yes |   |
| WPEP 75-25 | 1/4″ | 3/4″ | 3/4″ | Yes | |
| WPEP 100-25 | 1/4″ | 1″ | 1″ | Yes | |

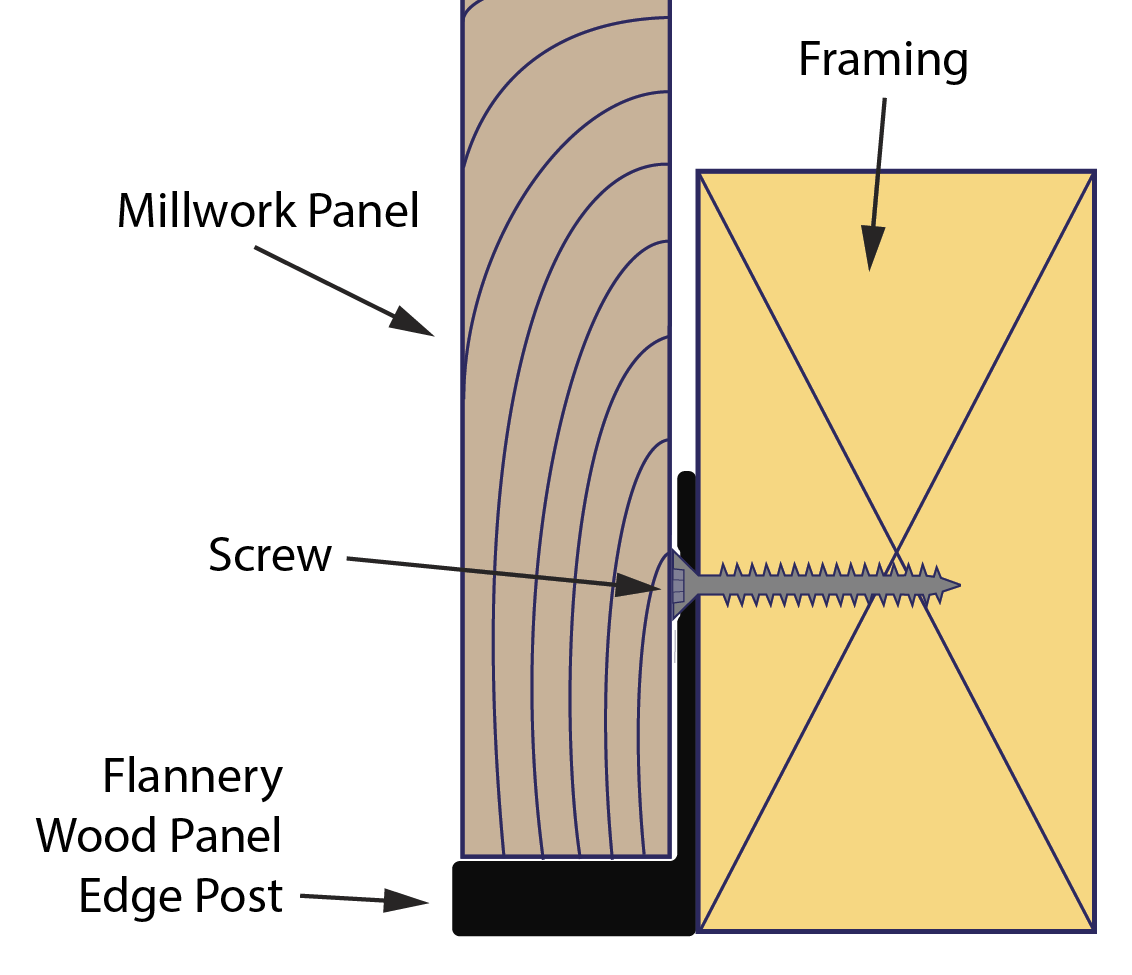

Wood Panel Trims must be attached to the framing with nails, screws or other approved fastening methods.
