Wood Panel J-Key
Trim Purpose
Specs, MSDS, and LEED Information for Flannery Trims & Products
Flannery’s Wood Panel J-Key is a termination trim for millwork panels that meet a dissimilar wall or material. Unlike the standard Wood Panel J-Mold, the J-Key is manufactured with a 3/16” Key to create a minimalistic design. It is offered in a variety of depths to accommodate different panel thicknesses, allowing the installer to conceal the unfinished edge of the panel. Once installed, only the 3/16” flange is visible, creating a crisp, detail for wood panel edges.
Manufacturer's Specifications
Flannery’s Wood Panel Trims are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Aluminum panel trims come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish or other factory finishes and custom paint orders are available. You can view our factory finishes to see if we have what you are looking for or if you do not see the finish, you are looking for, chances are we can color-match it or we already have it! Flannery Trim wants to always make sure we can get you the right look and feel for your building project.

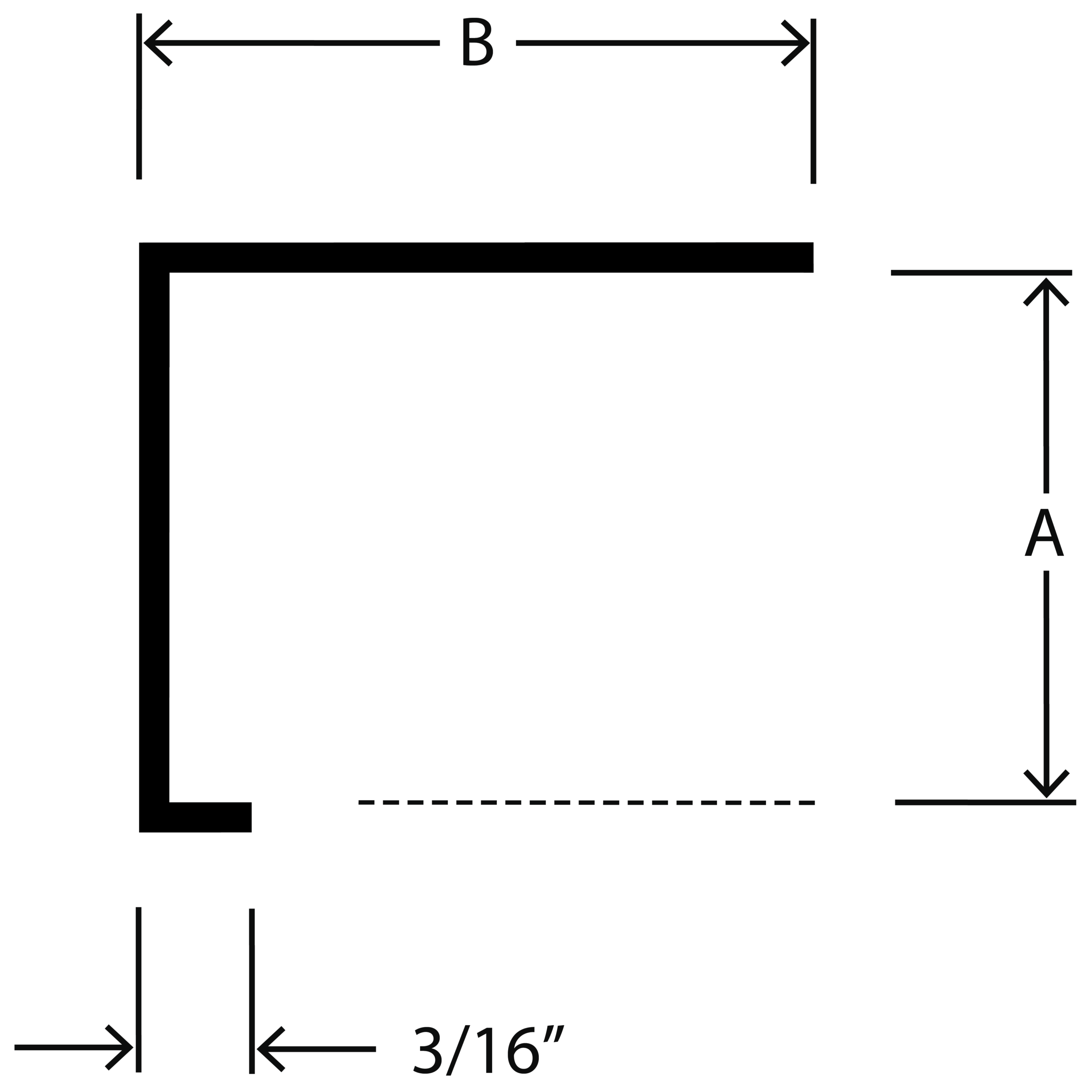

| Part No. | “A” Depth | “B” Width | Panel Size | Stock Item | Downloads |
|---|---|---|---|---|---|
| JPM 375 | 3/8″ | 1″ | 3/8″ | Yes |

|
| JPM 50 | 1/2″ | 1 – 1/8″ | 1/2″ | Yes |
|
| JPM 625 | 5/8″ | 1 – 1/8″ | 5/8″ | Yes |
|
| JPM 75 | 3/4″ | 1 – 1/8″ | 3/4″ | Yes |
|
| JPM 100 | 1″ | 1 – 1/8″ | 1″ | Yes |
|
| JPM 850-100 | 7/8″ | 1 – 1/8″ | 7/8″ | Yes |
|
| JPM 850-200 | 7/8″ | 2″ | 7/8″ | Yes |
|

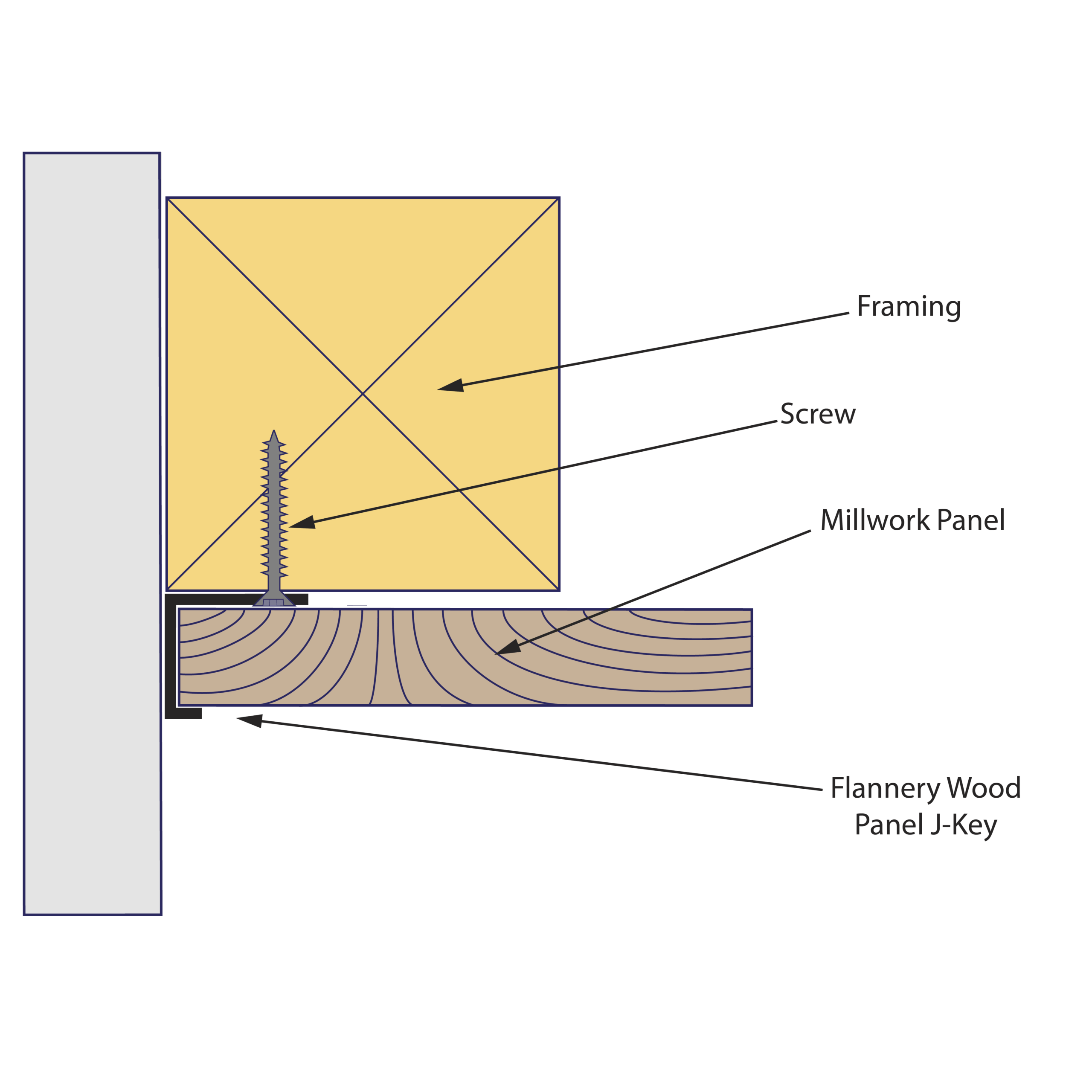

Attach Flannery’s Wood Panel J-Key to the framing with nails, screws or other approved fastening methods.
