Wood Panel J-Mold

Trim Purpose

Specs, MSDS, and LEED Information for Flannery Trims & Products

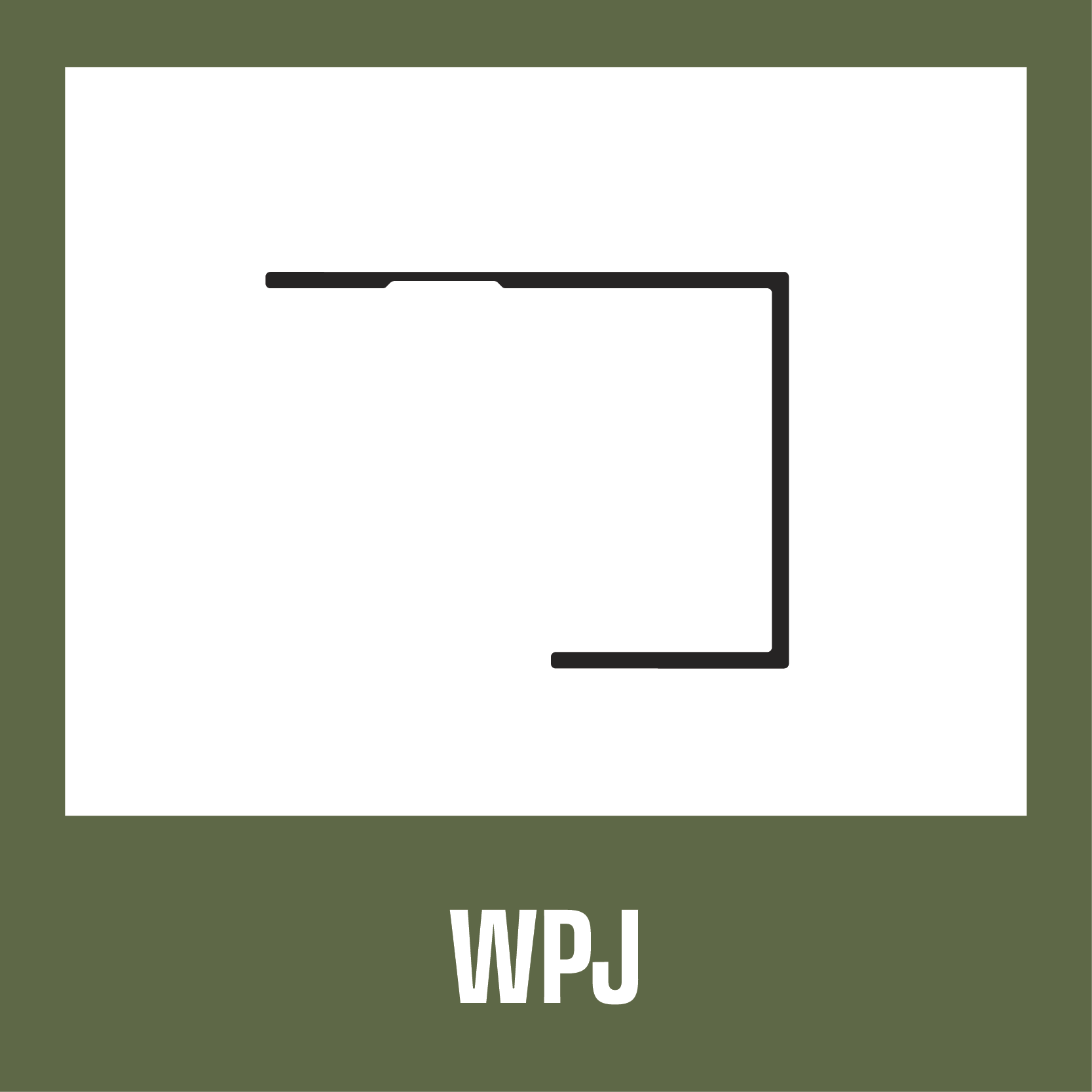

Flannery’s Wood Panel J-Mold is a termination trim for millwork panels that terminate against a dissimilar wall or material. The Wood Panel J-Mold comes with a variety of face flange sizes, each allowing the installer to slide the wood paneling in behind the flange and cover the unfinished edge of the panel.

View and Download the Panel J-Mold Data Sheet Click Button to View and Download all the specs for Wood Panel J-Mold

SKU: WPJ 75-375 Category: Tags: , , ,

Manufacturer's Specifications

Flannery’s Wood Panel Trims are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Aluminum panel trims come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish or other factory finishes and custom paint orders are available. You can view our factory finishes to see if we have what you are looking for or if you do not see the finish, you are looking for, chances are we can color-match it or we already have it! Flannery Trim wants to always make sure we can get you the right look and feel for your building project.



Part No. “A” Width “B” Width Panel Size Stock Item Downloads
CPJ 375-375 3/8″ 3/8″ 3/8″ Yes DWG - Cement Panel J-MoldPDF - Cement Panel J-Mold
CPJ 50-375 1/2″ 3/8″ 1/2″ Yes DWG - Cement Panel J-MoldPDF - Cement Panel J-Mold
SJM 625-100 5/8″ 1″ 5/8″ Yes DWG - Siding J-MoldPDF - Siding J-Mold
WPJ 75-375 3/4″ 3/8″ 3/4″ Yes DWG - Wood Panel J-MoldPDF - Wood Panel J-Mold
WPJ 75-50 3/4″ 1/2″ 3/4″ Yes DWG - Wood Panel J-MoldPDF - Wood Panel J-Mold
SJM 800-50 13/16” 1/2” 13/16” Yes DWG - Siding J-MoldPDF - Siding J-Mold
SJM 875-100 7/8″ 1″ 7/8″ Yes DWG - Siding J-MoldPDF - Siding J-Mold
SJM 1125-1250 1-1/8″ 1-1/4 1-1/8″ Yes DWG - Siding J-MoldPDF - Siding J-Mold
SJM 1063-375 1 1/16” 3/8” 1-1/16” Yes DWG - Siding J-MoldPDF - Siding J-Mold
DEJ 1188-75 1-3/16″ 3/4″ 1-3/16″ Yes DWG - Siding J-MoldPDF - Siding J-Mold

Wood Panel Trims must be attached to the framing with nails, screws or other approved fastening methods.
