Wood Panel Screed
Trim Purpose
Specs, MSDS, and LEED Information for Flannery Trims & Products
Flannery’s Wood Panel Screed features return keys that cover the cut edges of millwork panels, ensuring a polished finish. This trim provides a straight, uniform reveal between panels and can be installed either horizontally or vertically to achieve clean architectural lines.
Manufacturer's Specifications
Flannery’s Wood Panel Trims are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Aluminum panel trims come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish or other factory finishes and custom paint orders are available. You can view our factory finishes to see if we have what you are looking for or if you do not see the finish, you are looking for, chances are we can color-match it or we already have it! Flannery Trim wants to always make sure we can get you the right look and feel for your building project.
| Part No. | “A” Depth | “B” Width | Panel Size | Stock Item | Downloads |
| PCS 375-50 | 3/8″ | 1/2″ | 3/8″ | Yes |   |
| PCS 375-75 | 3/8″ | 3/4″ | 3/8″ | Yes | |
| PCS 375-100 | 3/8″ | 1″ | 3/8″ | Yes | |
| PCS 50-25 | 1/2″ | 1/4″ | 1/2″ | Yes | |
| PCS 50-50 | 1/2″ | 1/2″ | 1/2″ | Yes | |
| PCS 50-75 | 1/2″ | 3/4″ | 1/2″ | Yes | |
| PCS 50-100 | 1/2″ | 1″ | 1/2″ | Yes | |
| PCS 625-50 | 5/8″ | 1/2″ | 5/8″ | Yes | |
| PCS 625-75 | 5/8″ | 3/4″ | 5/8″ | Yes | |
| PCS 625-100 | 5/8″ | 1″ | 5/8″ | Yes | |
| PCS 75-25 | 3/4″ | 1/4″ | 3/4″ | Yes | |
| PCS 75-50 | 3/4″ | 1/2″ | 3/4″ | Yes | |
| PCS 75-75 | 3/4″ | 3/4″ | 3/4″ | Yes | |
| PCS 75-100 | 3/4″ | 1″ | 3/4″ | Yes | |
| PCS 100-100 | 1″ | 1″ | 1″ | Yes | |

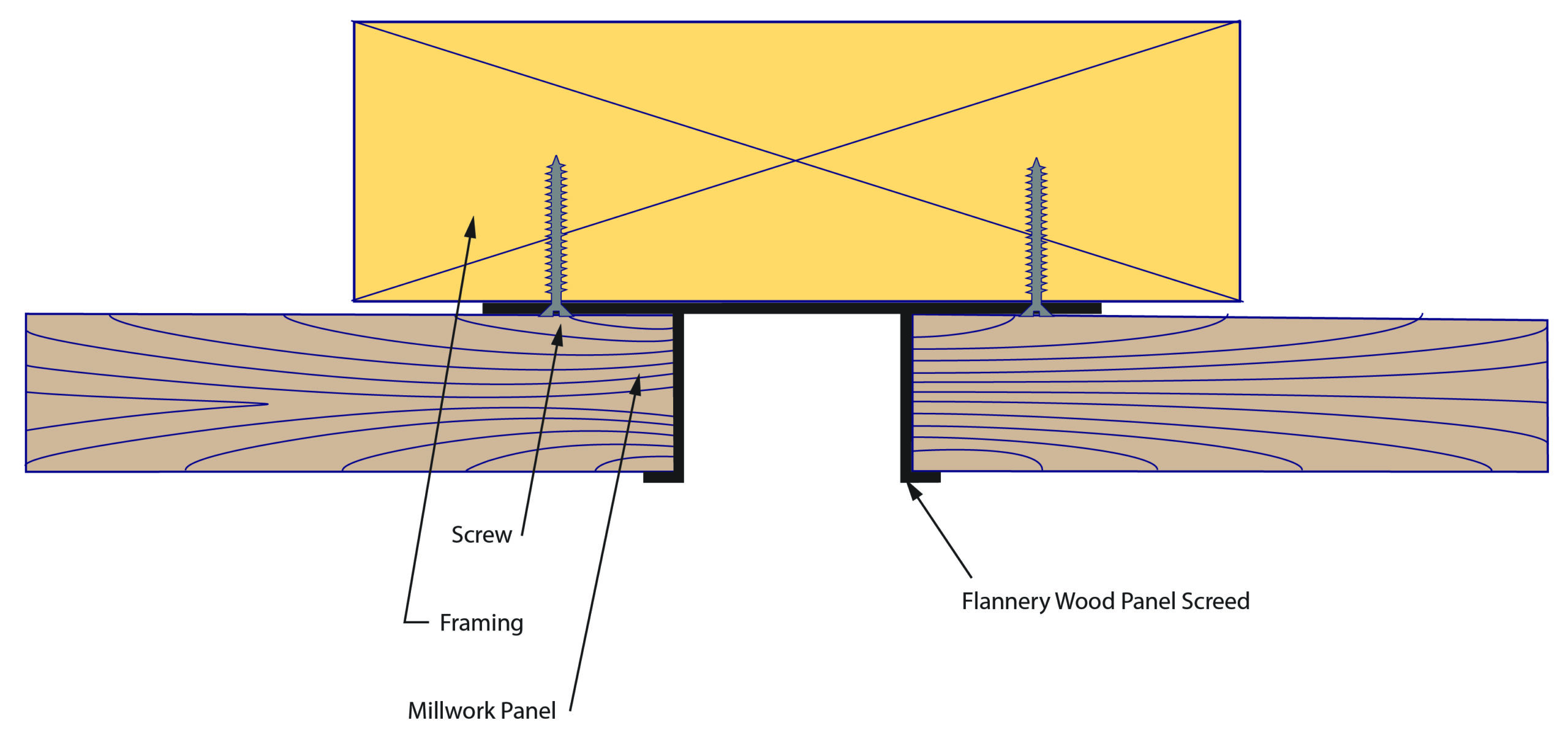

Attach Flannery’s Wood Panel screed to the framing with nails, screws or other approved fastening methods.
