Universal Light Cove Acoustical Shelf
Trim Purpose
Specs, MSDS, and LEED Information for Flannery Trims & Products
Flannery’s Universal Light Cove Acoustical Shelf (ULAS) is an extruded aluminum trim that attaches to a vertical wall to create a shelf or ledge for an LED or standard light fixture. The lower leg on the ULAS is built to attach to acoustical ceiling grid to create a seamless shelf effect.
Manufacturer’s Specification

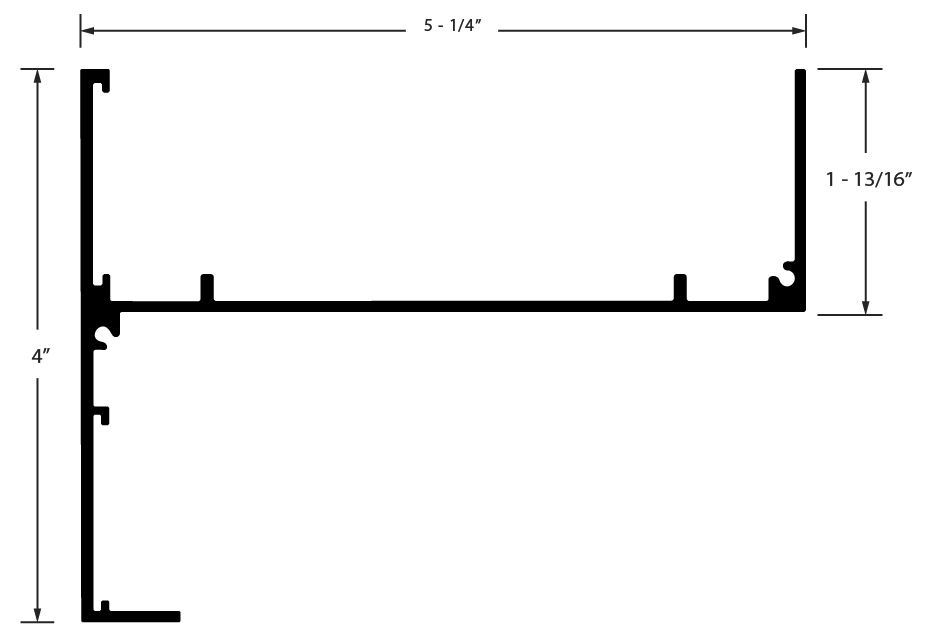

Flannery’s Universal Light Cove Acoustical Shelf trim is a standard extruded aluminum product with a 6063 T5 alloy with a minimum .063” wall thickness. The ULAS trim is sold in 10’ lengths and comes with Grid Clips and Trim Splices to ease their integration into the suspended ceiling system. Flannery stocks all Strata Trims in our Cloud White factory paint finish or Mill Finish for field painting. Flannery’s Cloud White paint is a factory applied Kynar finish. In addition to our standard finishes, Strata trims can also be ordered in any liquid or powder-coated paint finish. Custom paint orders can be quoted, and samples prepared for approval. Additional finishes include anodizing, polishing, brushing, and “wood-grain” applications. Take a look at all of our factory finishes that we have to offer and if you can’t find what you are looking for, contact us and let us know and we can get you what you need.
| Product No. | Downloads |
|---|---|
| ULAS 400-525 |   |

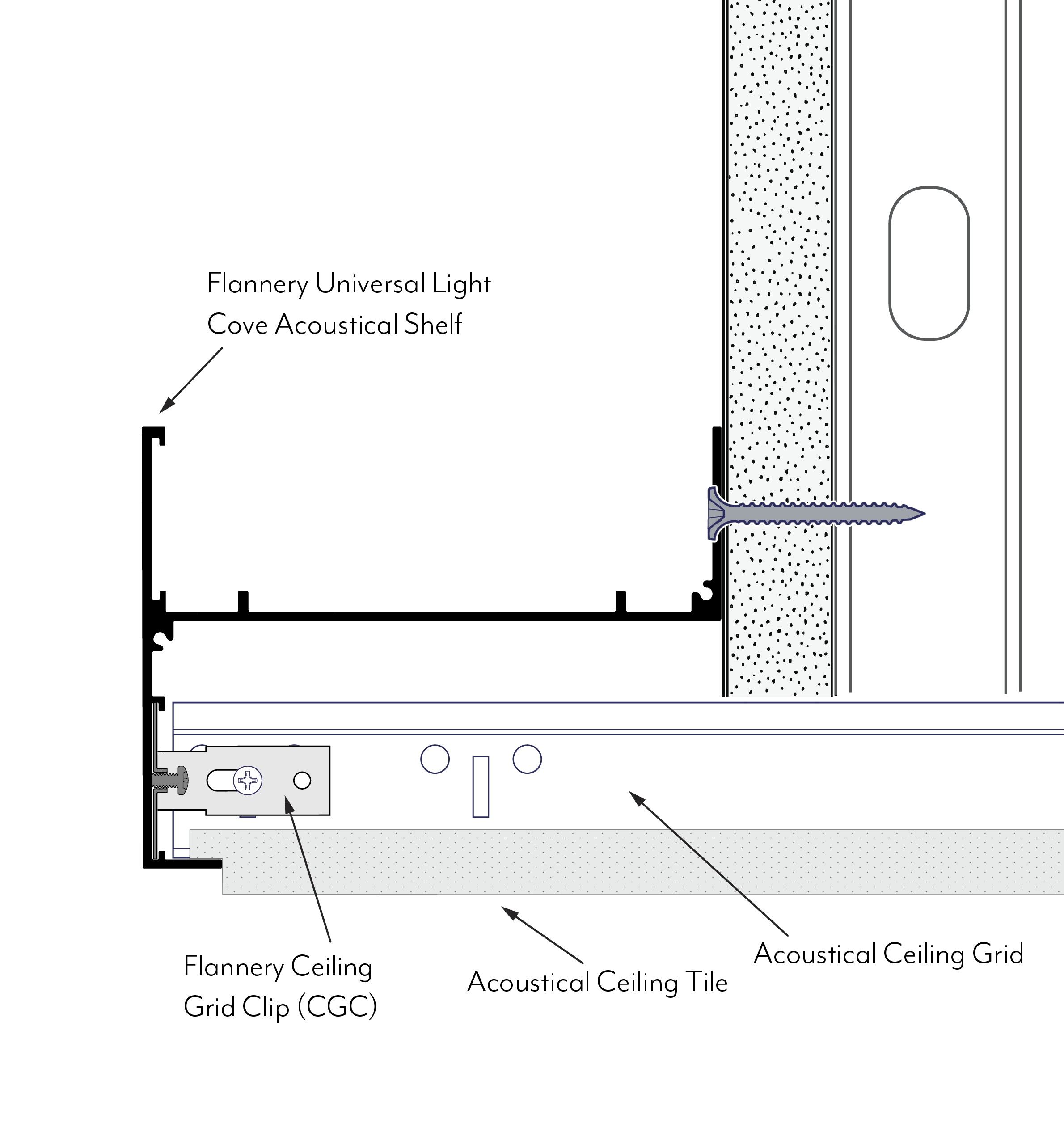

Installation Details
Connect the Universal Light Cove Acoustical Shelf trim to the suspended ceiling grid using the Ceiling Grid Clips (CGC) included. Then attach the top flange of the shelf to the wall using the appropriate fasteners. Use the included Ceiling Cloud Trim Splices to connect one piece of trim to the next for level and clean butt joints. All Universal Light Cove Trims must be cut accurately and installed with tight, neat joints. Manufacturer recommends that a carbide tip blade along with blade lubricant be used when cutting any aluminum trim.
