Does Flannery sell Wood Panel Reveals?

Yes, Flannery’s Wood Panel Reveal is a trim for millwork panels that creates an aesthetic reveal between two millwork panels. The Wood Panel Reveal comes with a 3/8” face flange, which allows the installer to slide the wood paneling in behind the flange and cover the unfinished edge of the panel.

What is a Wood Panel Reveal?

Flannery’s Wood Panel Reveal is a trim for millwork panels that creates an aesthetic reveal between two millwork panels. The Wood Panel Reveal comes with a 3/8” face flange, which allows the installer to slide the wood paneling in behind the flange and cover the unfinished edge of the panel.

Wood Panel Base (with Key)

Trim Purpose

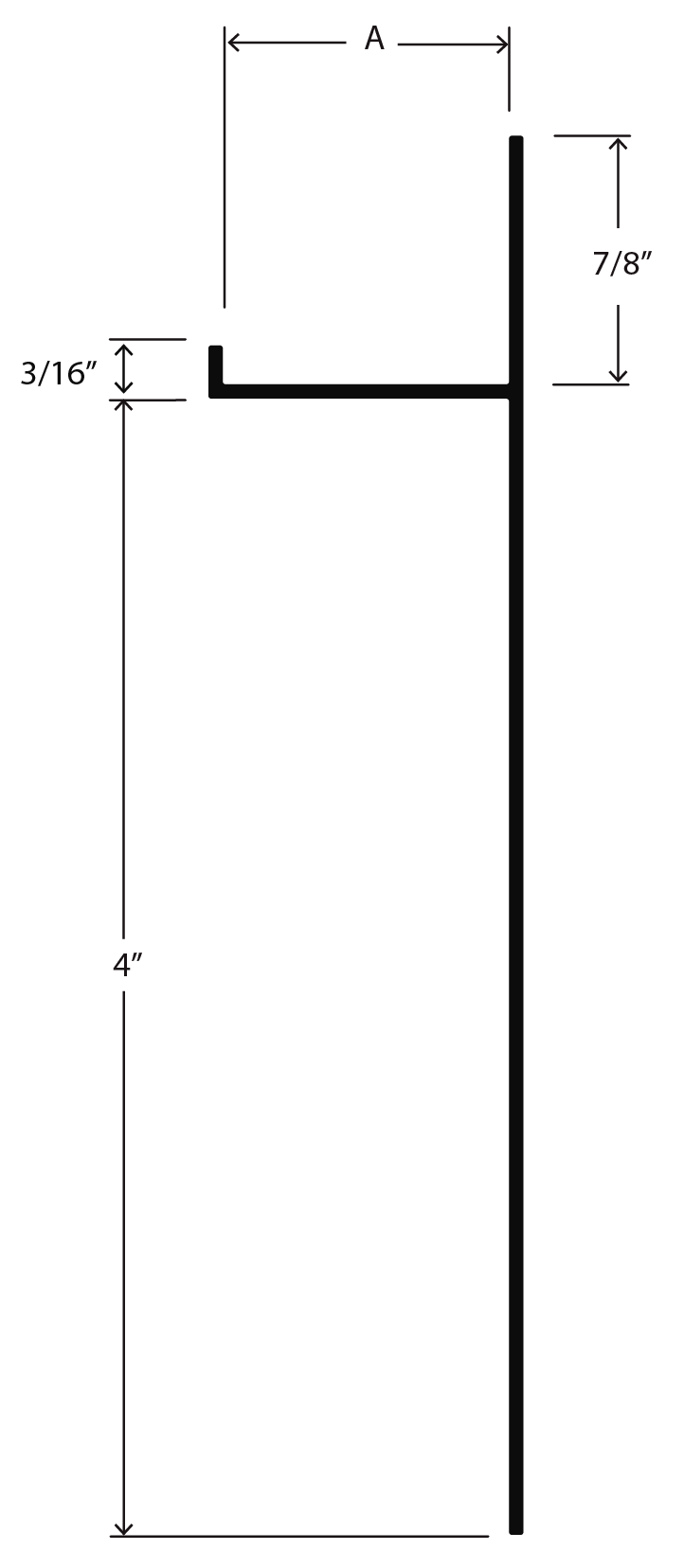

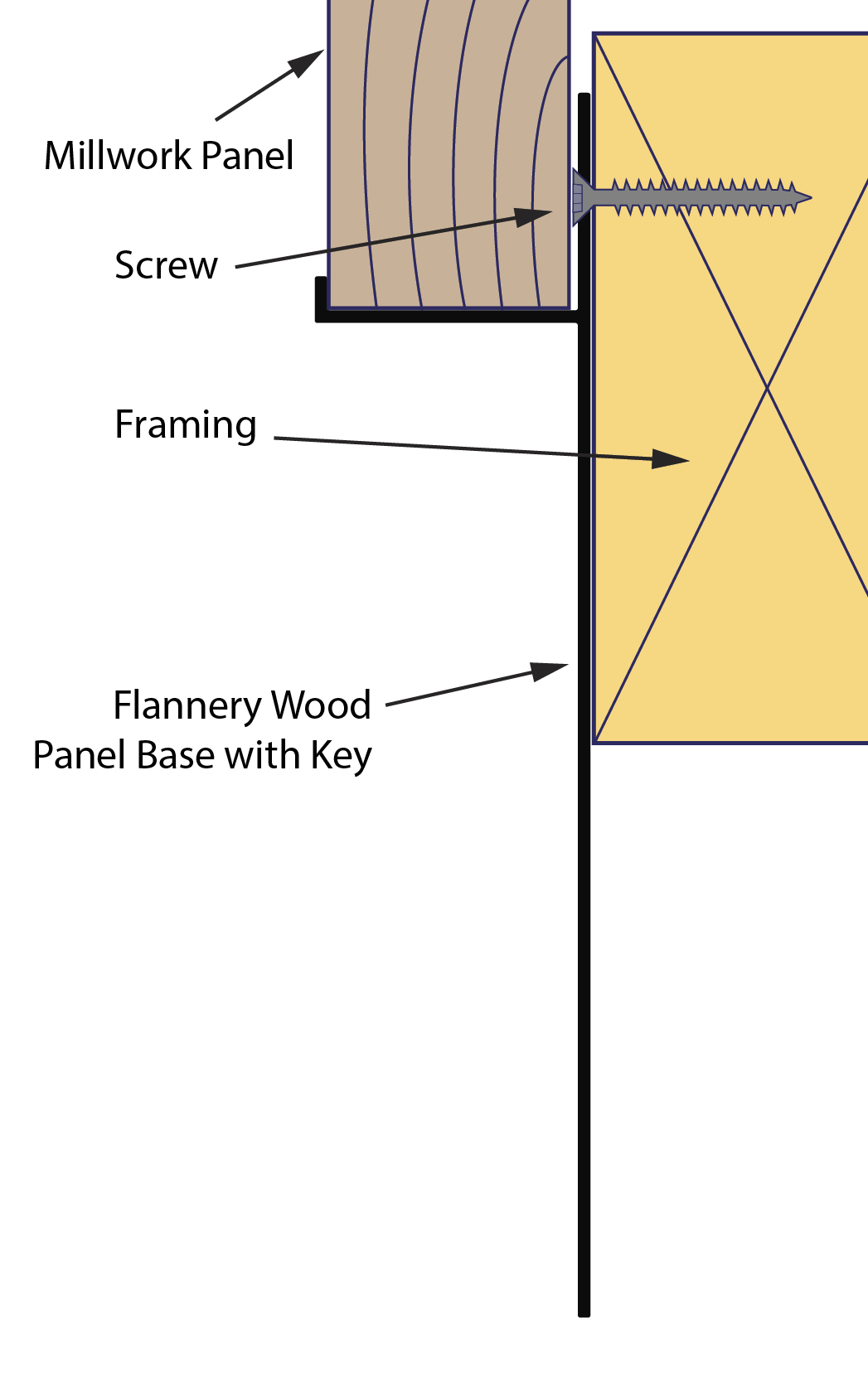

Flannery’s Wood Panel Base (with key) creates a clean, recessed termination at the base of millwork panels. Designed for 1/2”, 3/4”, or 1” thick panels, it features a 4” base flange and 3/16” return keys that conceal cut edges while allowing panels to sit flush against the wall, delivering a seamless, built-in look.

Manufacturer's Specifications

Flannery’s Wood Panel Trims are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Aluminum panel trims come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish or other factory finishes and custom paint orders are available. You can view our factory finishes to see if we have what you are looking for or if you do not see the finish, you are looking for, chances are we can color-match it or we already have it! Flannery Trim wants to always make sure we can get you the right look and feel for your building project.
