Plaster F-Mold
Trim Purpose
Specs, MSDS, and LEED Information for Flannery Trims & Products
Flannery’s Plaster F-Mold (FPM) is a metal stucco wall trim that creates an aesthetic termination reveal in any stucco wall system. Typically installed where a stucco wall terminates at an opposing wall or dissimilar material, the Plaster F-Mold can act as a stucco stop with a built-in reveal. Select sizes of Flannery’s Plaster F-Molds are available with Aluminum Alignment Splices to ease the installation process and create crisp and clean butt joints and lines.

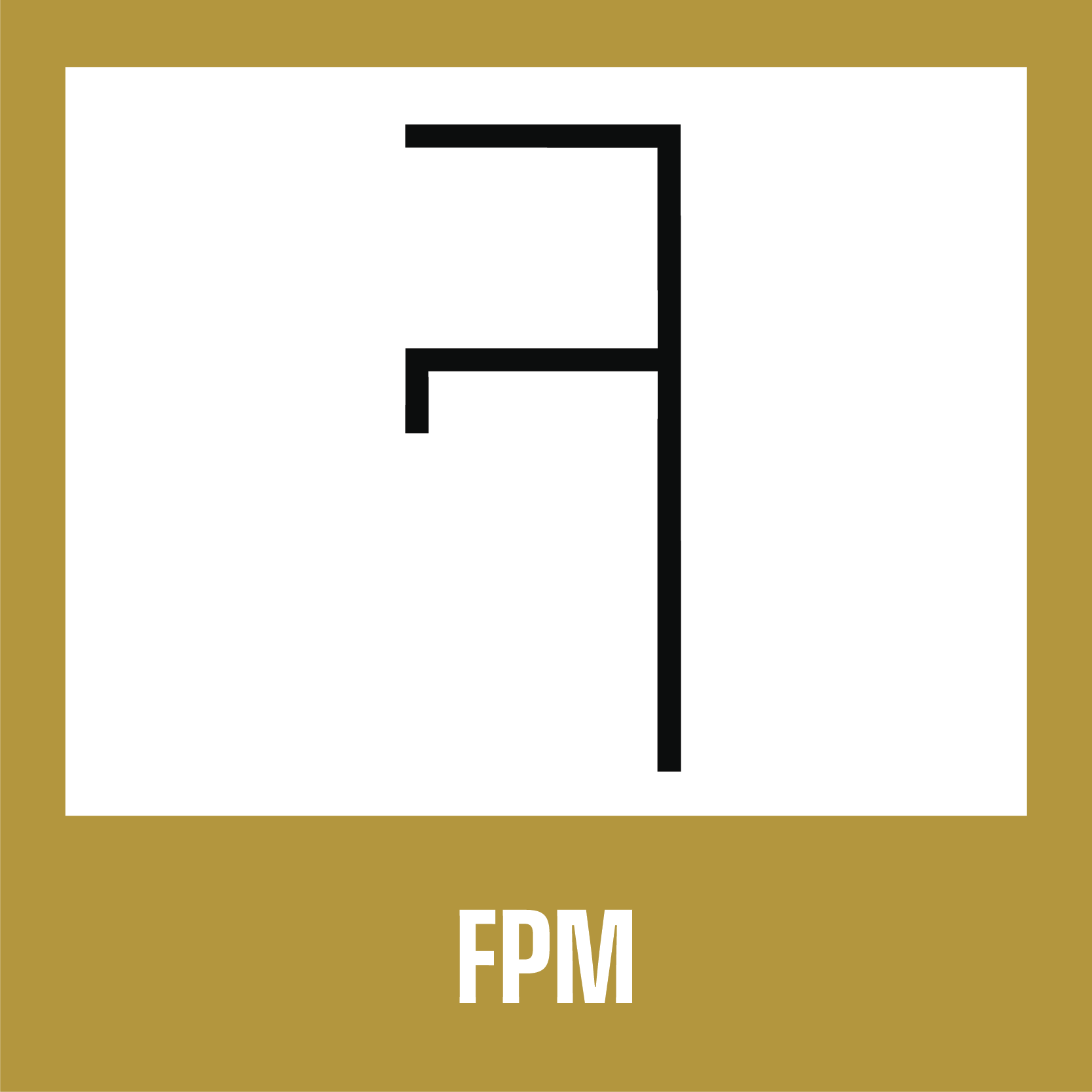

Product Details
Flannery’s F-Molds are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. Aluminum Plaster trims come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish, or other factory finishes, and custom paint orders are available. You can view our factory finishes to see if we have what you are looking for. If you do not see the finish, you are looking for, chances are we can color-match it or we already have it!
This product is also known in the industry as a FDM, FD, FP, and FS.

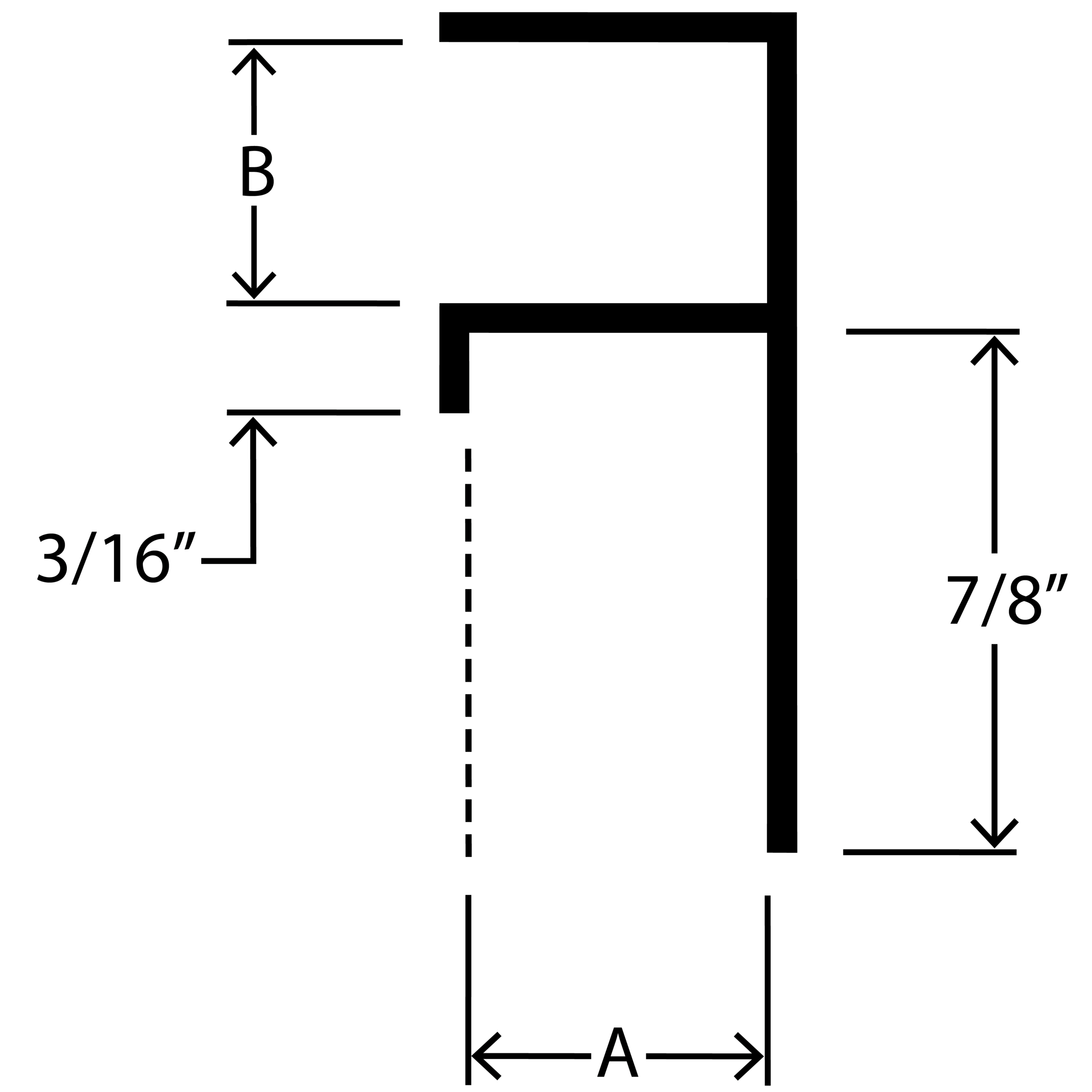

| Part No. | “A” Depth | “B” Width | Stucco Thickness | Alignment Splices | Stock Item | Venting Available | Downloads |
|---|---|---|---|---|---|---|---|
| FPM 50-25* | 1/2″ | 1/4″ | 5/8″ | N/A | No | No |

|
| FPM 50-50 | 1/2″ | 1/2″ | 5/8″ | N/A | Yes | Yes |
|
| FPM 50-75 | 1/2″ | 3/4″ | 5/8″ | N/A | Yes | Yes |
|
| FPM 50-100* | 1/2″ | 1″ | 5/8″ | N/A | No | Yes |
|
| FPM 50-150* | 1/2″ | 1-1/2″ | 5/8″ | N/A | No | Yes |
|
| FPM 50-200 | 1/2″ | 2″ | 5/8″ | N/A | No | Yes |
|
| FPM 50-250* | 1/2″ | 2-1/2″ | 5/8″ | N/A | No | Yes |
|
| FPM 50-300* | 1/2″ | 3″ | 5/8″ | N/A | No | Yes |
|
| FPM 50-400* | 1/2″ | 4″ | 5/8″ | N/A | No | Yes |
|
| FPM 50-600* | 1/2″ | 6″ | 5/8″ | N/A | No | Yes |
|
| FPM 625-50 | 5/8″ | 1/2″ | 3/4″ | N/A | Yes | Yes |
|
| FPM 625-75 | 5/8″ | 3/4″ | 3/4″ | N/A | Yes | Yes |
|
| FPM 625-100* | 5/8″ | 1″ | 3/4″ | N/A | No | Yes |
|
| FPM 625-150* | 5/8″ | 1-1/2″ | 3/4″ | N/A | No | Yes |
|
| FPM 625-200 | 5/8″ | 2″ | 3/4″ | N/A | Yes | Yes |
|
| FPM 625-300* | 5/8″ | 3″ | 3/4″ | N/A | No | Yes |
|
| FPM 625-400* | 5/8″ | 4″ | 3/4″ | N/A | No | Yes |
|
| FPM 75-25 | 3/4″ | 1/4″ | 7/8″ | Yes | Yes | N/A |
|
| FPM 75-50 | 3/4″ | 1/2″ | 7/8″ | Yes | Yes | Yes |
|
| FPM 75-75 | 3/4″ | 3/4″ | 7/8″ | Yes | Yes | Yes |
|
| FPM 75-100 | 3/4″ | 1″ | 7/8″ | Yes | Yes | Yes |
|
| FPM 75-150 | 3/4″ | 1-1/2″ | 7/8″ | Yes | Yes | Yes |
|
| FPM 75-200 | 3/4″ | 2″ | 7/8″ | Yes | Yes | Yes |
|
| FPM 75-250* | 3/4″ | 2-1/2″ | 7/8″ | Yes | No | Yes |
|
| FPM 75-300 | 3/4″ | 3″ | 7/8″ | Yes | Yes | Yes |
|
| FPM 75-400 | 3/4″ | 4″ | 7/8″ | Yes | Yes | Yes |
|
| FPM 75-600* | 3/4″ | 6″ | 7/8″ | N/A | No | Yes |
|
| *Indicates Modified Part |
Install all Plaster F-Molds using full ten-foot lengths wherever possible. Attach Plaster F-Molds over the weather resistant barrier (WRB) to the framing with nails, screws, or other approved fastening methods. A shiplap of building paper or WRB may need to be installed over the attachment flange if the Plaster F-Mold is being used as a stucco stop. All Plaster Trims must be cut accurately and installed with tight, neat joints. All nailing flanges must be covered with lath and all butt joints must be sealed. Manufacturer recommends that a carbide tip blade along with lubricant be used when cutting any aluminum trims.
Aluminum Alignment Splices
Many of Flannery’s Plaster Channel Screeds come with Aluminum Alignment Splices to ease the installation process and create crisp and clean butt joints and lines.
Flannery offers prefabricated corners for intricate building designs that utilize intersecting lines and bands on exterior walls. Prefabricated corners are mitered and then welded together at their attachment flanges, then vinyl tape is applied to the back of the reveal to prevent water intrusion. Factory welded corners come with 6” legs, however custom leg lengths can be ordered.
Flannery can radius Plaster F-Molds when the trim runs along a “curved” or “radiused” plane. Radiused material is bent to a project’s dimensional requirements and is considered a custom product. Download the Radius Form or view all of our radius forms.
