Soffit W-Mold Vent

Trim Purpose

Specs, MSDS, and LEED Information for Flannery Trims & Products

Flannery’s Soffit W-Mold Vent creates a ventilation strip where a plaster soffit meets a dissimilar material or wall. Soffit W-Mold Vents are typically set at the corner joint where a fascia terminates and a soffit return begins.

SKU: WPM-V Category: Tags: ,

Manufacturer's Specifications

Flannery’s Soffit W-Mold Vents are standard extruded aluminum alloy 6063 T5 and have a .050” nominal wall thickness. All Vent Slots are 1/8” wide, 1” long and are configured at 1½” on center lengthwise and ½” on center laterally. Each row of Vent Slots lengthwise provides approximately one-square inch of vented area per lineal foot. Aluminum Vents come in 10′ lengths and shall have a standard Clear Anodized Finish. Mill Finish (for field priming & painting), Chem-film finish or other factory finishes and custom paint orders are available. Click on Info Tab above for Factory Finishes.

Product No. “A” Depth “B” Width Vent Slots Stock Item Approximate Vent Area Per Lineal Foot
WPM 75-V-200 3/4″ 2″ 3 Yes 3 sq. inch

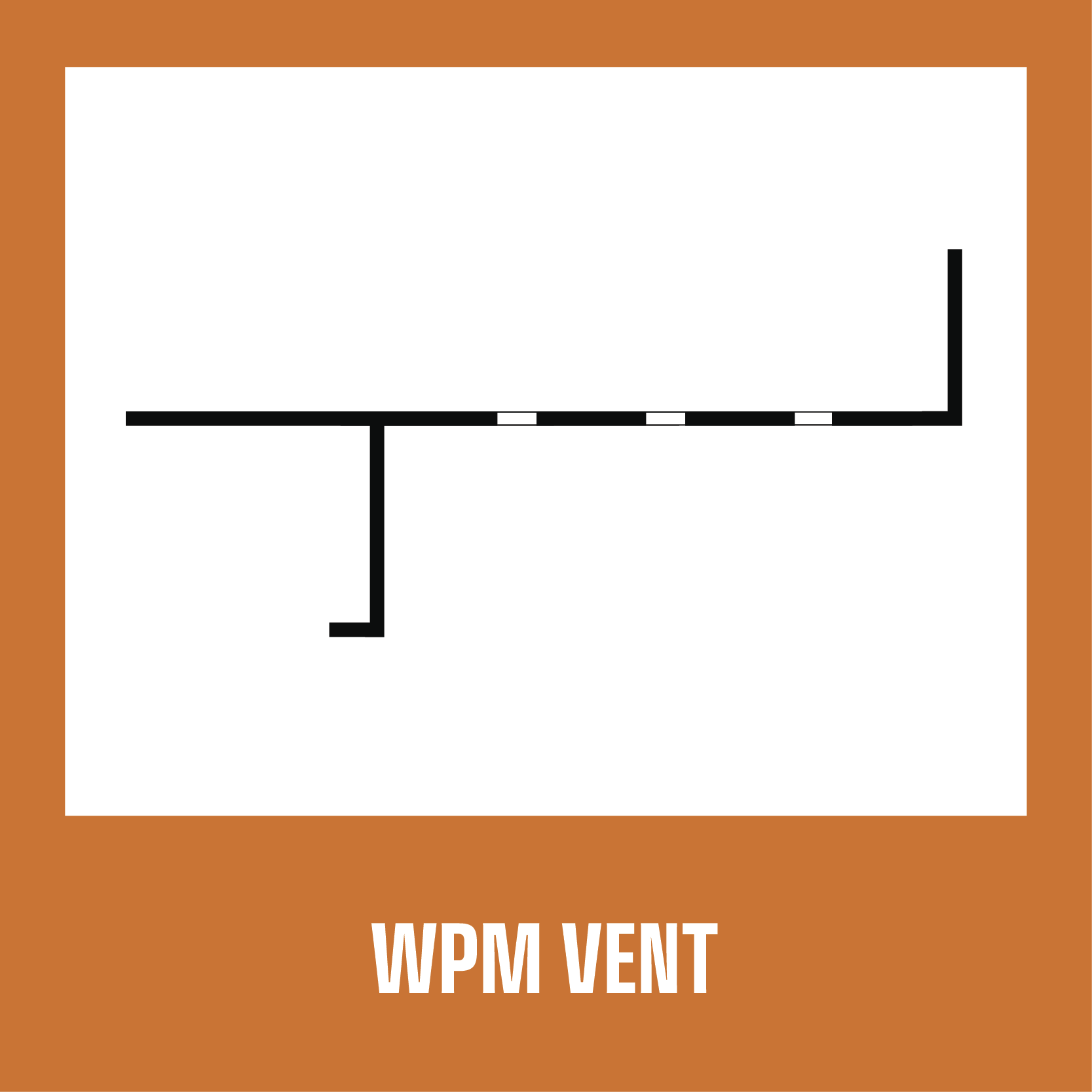

10 Soffit W Mold Vent Shape Dimen 1000 R1 BjB - Soffit W-Mold Vent

Attach Soffit W-Mold Vents to the framing with nails, screws, or other approved fastening methods. Flannery’s Aluminum Vents are also available with bug screen upon request.

10 Soffit W Mold Vent Install Detail R2 1000 BjB - Soffit W-Mold Vent
10 Soffit W Mold Vent 3D Detail R1 BjB - Soffit W-Mold Vent
